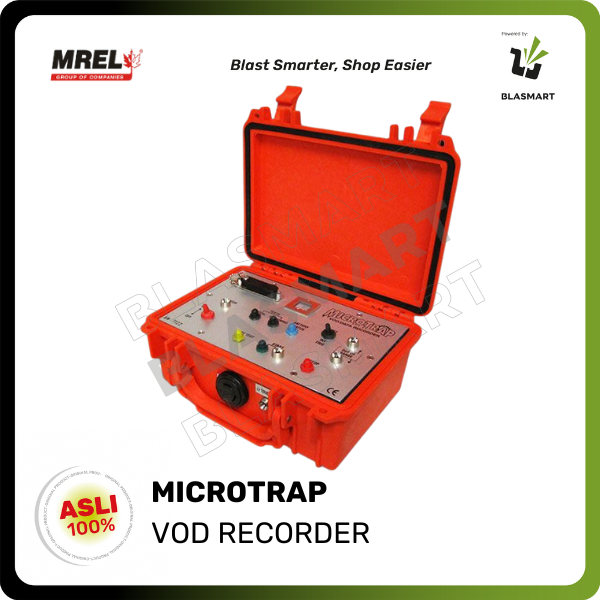

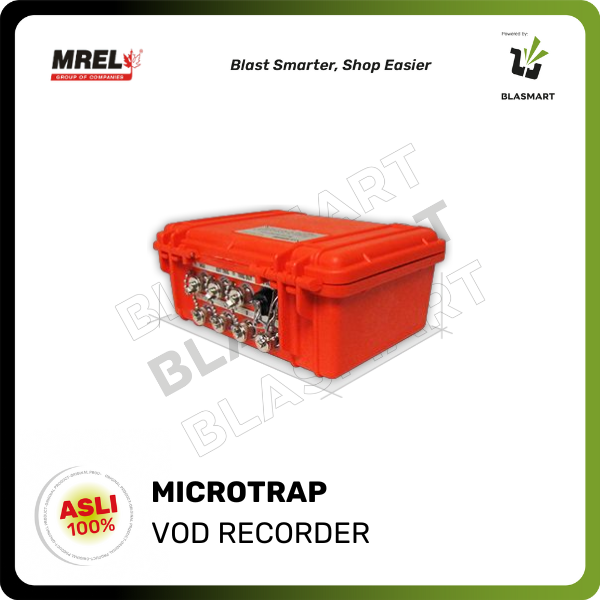

MicroTrap™ VOD/Data Recorder
The most trusted VOD/Data Recorder.
- Affordable, easy to use, and portable.
- 2 MHz recording rate, 14 bit resolution.
- Outstanding operational temperature range.
- Long operational battery life & non-volatile memory.
- Record one or several blastholes per test.
This item includes:
- MicroTrap™ VOD/Data Recorder (VOD recording capabilities only)
- 120 or 230 VAC Battery Charger
- USB Communications Cable
- External Trigger Adapter
- padded MicroTrap™ Carry Case
- MicroTrap™ Operations Manual (English)
- DAS™ Data Acquisition Suite Standard Edition for Windows XP™ and later
- MREL’s 1 year Comprehensive 100% Parts and Labour Warranty
If you want to profile the VOD continuously along the explosives columns in multiple blastholes, along an explosives sample, or determine the delay times between blastholes, the most affordable and easiest to use recorder is the MicroTrap™ VOD/Data Recorder. It is the World's most popular VOD recorder and can be optionally extended to record any sensor that outputs ±10 V DC voltage such as pressure sensors and accelerometers.
FOR EXPLOSIVES CONSUMERS
You are paying for explosives and delay detonators to provide you with the energy and timing your blasts need under your specific blasting conditions. The MicroTrap™ VOD/Data Recorder is used by mines and quarries to perform spot checks of explosives and detonator delay time performance during blasts to compare the actual VOD and delay time results to the specifications published by the explosives manufacturer.
FOR EXPLOSIVES MANUFACTURERS
Your customers depend on you for your explosives and detonators. At the customer's blast site the MicroTrap™ VOD/Data Recorder is used by your technical service representative to document the VOD performance of the explosives and delay times of the delay detonators being sold to the customer. At explosives plants, the MicroTrap™ VOD/Data Recorder is used as part of the quality control process to test VOD, airblast overpressure, or underwater pressure of samples of explosives including cartridges, boosters, detonating cord, bulk explosives of all types, and military explosives.
"The most trusted VOD/Data Recorder."
FEATURES:
- Portable 1 channel continuous explosives velocity of detonation (VOD) recorder for explosives in one or more blastholes and explosives samples.
- Resolution = 14 bits, 1 part in 16,384.
- Recording speed is adjustable from 1 Hz to 2 MHz.
- Standard memory of 4,000,000 data points = 2 seconds recording time at a 2 MHz recording speed.
- Adjustable internal and multiple external trigger modes.
- Pre-trigger time is adjustable from 0% to 100% of the total recording time.
- Multiple event storage of up to 16 events in non-volatile memory.
- Operates from the internal rechargeable NiCad battery (up to 12 hours), or VAC mains, or an external 12-20 VDC power source (power source not included).
ACCESSORIES:
- VOD PROBEROD: A variety of types of calibrated resistance probes for use in explosive samples.
- VOD PROBECABLE: A variety of types of calibrated resistance cables for use in blastholes.
- Coaxial Cable Reel: A variety of lengths used to carry the signals from the VOD PROBEs to the recorder.
- Other sensors: A variety of calibrated uni-axial and tri-axial accelerometers, air blast and underwater pressure sensors, signal conditioners, signal cables and mounts.
